Die - Cast Rotor Testing Machine , Industry Three Phase Motor Rotor Test

Product Categories
Qingdao AIP Intelligent Instrument Co., Ltd
Contact Now

Die - Cast Rotor Testing Machine , Industry Three Phase Motor Rotor Test

  • 1
  • 2
  • 3

Brand Name : AIP

Model Number : AIP89XX

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 45 work days

Packaging Details : wooden case

Warranty : 12 months

Monitor : 19” LCD

Service : support remote control failure diagnose

Test : broken bar, thin bar, porosity

Power supply : customized as the national grid

Color : grey (customized)

Contact Now

Die-Casting Rotor Testing Machine Of Three-Phase Motor Rotor

1. Rotor testing machine feature

  • Rotor testing machine can be applied to both the laboratory and production line. The initial test, sample test and all products test can be performed to the die casting rotor on the production line, by which the production of the unqualified rotor can be controlled well.
  • Rotor testing machine mainly tests the die casting quality of rotor, and it can test the fault of die casting rotor fast, for example, broken bar, thin bar, porosity, leakage, squirrel cage eccentricity, slot deviation etc.

2. Configuration list

No.

Product

Specification

Unit

Qty

1

Master unit

Data acquisition and calculation

Set

1

2

Test platform

Customized

Set

1

3

Special fixture

Customized

Set

1

4

Sensor

Customized

Set

1

5

Cabinet unit

With the foot wheels to move

Set

1

6

Test software

Interface and help document

Set

1

7

IPC

IPC+19” LCD+keyboard+mouse

Set

1

3. Technical specification

Test object

Three-phase motor rotor

Test bench

Separated

Save mode

IPC can save the data

Test item

Number of conducting bars, number of broken bars, number of thin bars, slot deviation angle

Judgement parameter

The quantity of conducting bar, minimum amplitude, maximum amplitude, comprehensive value

Test range

Outer diameter:20-100mm

Inner diameter:4-29mm

Lamination height :100mm(max)

Customized

Display mode

19” LCD

Working ambient

Temperature 0~40℃,humidity≤90％RH

4. After-sale service

  • In order to ensure high efficiency of equipment installation, testing and maintenance, AIP, backed by professional service engineers, provides 24 hours service, timely response within 72 hours, to ensure the production running smoothly.
  • Cooperative partners are from all over the world to ensure the machine run smoothly.
  • Branches are located in Changzhou, Taizhou, Shenzhen, and Foshan of China to provide you better service.

5. Customer site

Die - Cast Rotor Testing Machine , Industry Three Phase Motor Rotor Test

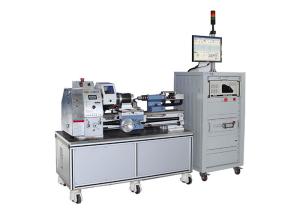

6. Machine picture

Die - Cast Rotor Testing Machine , Industry Three Phase Motor Rotor Test
