Grey White Stator Vacuum Testing Machine Multifunctional High Voltage 3KV / 5KV

Product Categories

Qingdao AIP Intelligent Instrument Co., Ltd

Contact Now

Brand Name : AIP

Model Number : AIP89XX

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 45 work days

Packaging Details : wooden package

height : 1900mm

warranty : 1 year

service : 24 hour online support

weight : 200kg

interface : USB, CAN, LAN, RS232, 485

high voltage : 3KV/5KV

Contact Now

Stator Vacuum Testing Machine Of Compressor Motor In Automotive Air Conditioner

1. Tests and introduction

Features: original negative pressure technology, vacuum degree can be set freely (0~-90KPa). The winding or coil imperfection can easily be found under the condition of negative pressure.
Test: surge, AC Hipot, insulation resistance, DC resistance and rotation

Motor picture

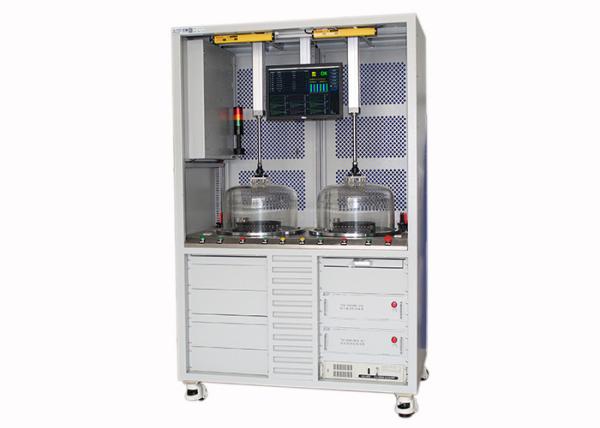

Grey White Stator Vacuum Testing Machine Multifunctional High Voltage 3KV / 5KV

2.Technical specification

Surge
working ambient	comparatively vacuum
output voltage setting range / precision	500～3000V ±(3%×display value+8V)
waveform comparison	area, area difference, corona and phase 3 waveforms displayed in the testing interface
AC Hipot
Output voltage setting range and precision	AC 200～3000V ±(2%×setting value+10V)
breakdown current testing range / precision	0.10～20.00mA ±(2%×display value+0.05 mA)
breakdown current presetting alarm range	Max:0.10～20.00mA；Min:0.00～20.00mA
test time range / resolution	0.5～999.9s 0.1s/step
Insulation resistance
output voltage setting range / precision	DC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range / precision	1～500MΩ ≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ)
insulation resistance alarm setting range	Max: 0～500MΩ; Min: 1～500MΩ
test time range / resolution	0.5～999s 0.1s/step
DC winding resistance test
testing range and precision	10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set.
test time range / resolution	0.5～999s 0.1s/step
temperature compensation function	Yes
temperature probe / range	DS18b20 -10.0℃~+50.0℃
precision	±0.5°C(range: -10℃~+50℃)
Direction of rotation
rotation	CW, CCW, still

3. Reference picture

4. Machine configuration list

No.	Name	Specification	Unit	Qty
1	Master unit	Customized	Set	1
2	Test software	Save the test requirements, data and control the test process	Set	1
3	Cabinet unit	Easy to be moved with foot wheels	Set	1
4	Function switch unit	Switch the test and different windings internally	Set	1
5	Alarm light	NG-red, PASS-green, In test- yellow	Set	1
6	Test bench	Customized integrated test bench	Set	1
7	Vacuum pump	Equipped with the function of oil mist purification and noise reduction	Set	1
